PERSEUS

Manage state machines

Restricted functionality

This functionality can only be accessed when having one of the following roles:
  • OWNER

The “State Machine Manager” is available in the frontend and can be used to create and update state machines.

If you want to learn more about state machines and their functionality have a look here.

The graphical representation of a state machine is done with mermaid.

Screenshot of the state machine manager

The following project states are already available by default:

  • InitialState
  • ComputeProjectRunning
  • Archive

To build more customized project states have a look here: Add a new state

Add a new state to the state machine

Section titled “Add a new state to the state machine”

Lets add our custom state TechnicalReview (view the tutorial) after the InitialState.

  1. Edit state machine

    Edit the state machine by clicking on the pen icon.

    Edit a state machine

  2. Prepare state machine

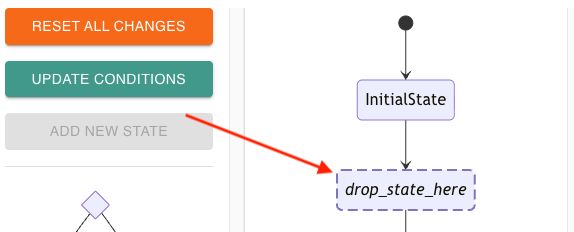

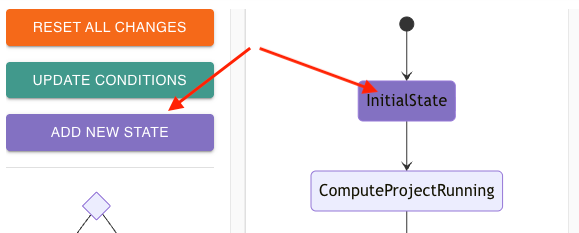

    Click on the state where you want to insert another state below. Then click on the add new state button.

    Prepare a state machine to add a new state Prepare a state machine to add a new state

  3. Drag and drop

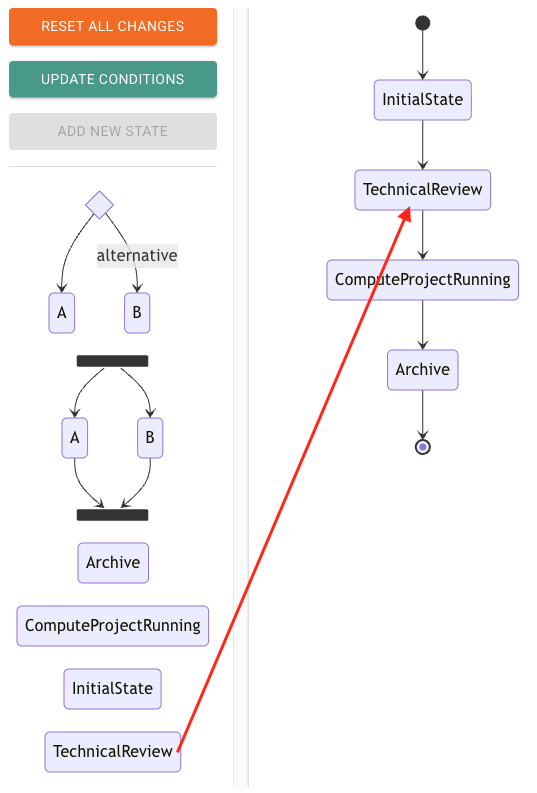

    Now you can use the drag & drop functionality to add a new state to the state machine:

    Drag and drop a new state to the state machine

Multiple states simultaneously

Section titled “Multiple states simultaneously”

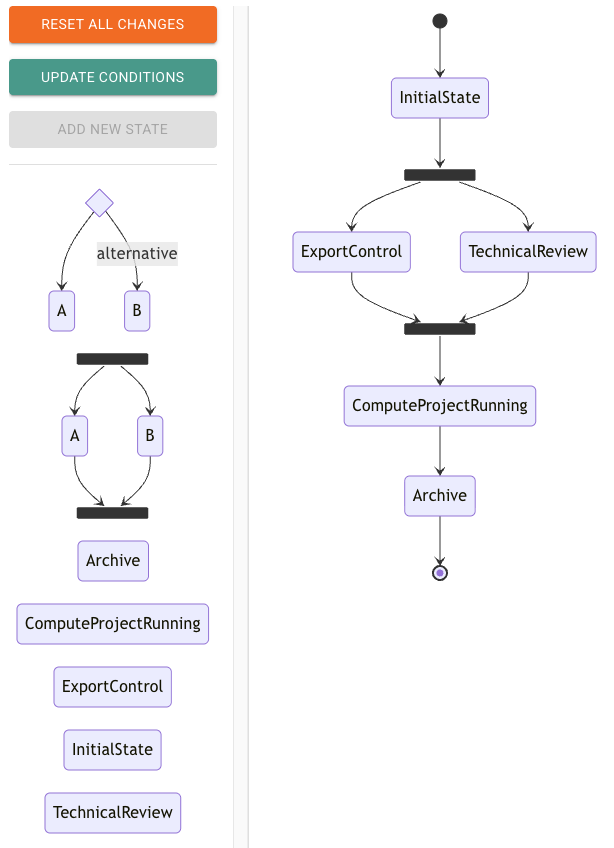

A project can be in several states at the same time. To i.e. enable TechnicalReview and ExportControl for a project to run simultaneously, the state machine can also be configured as follows:

Drag and drop a new state to the state machine

Conditions

Section titled “Conditions”

When a state fires an event, this event can carry one or more values. You can define conditions between state transitions, so that these transitions will only be executed when the firing event holds the value required. Learn more about how events work here.

To enable or update these conditions on state transitions, click on the update conditions button:

Update conditions button

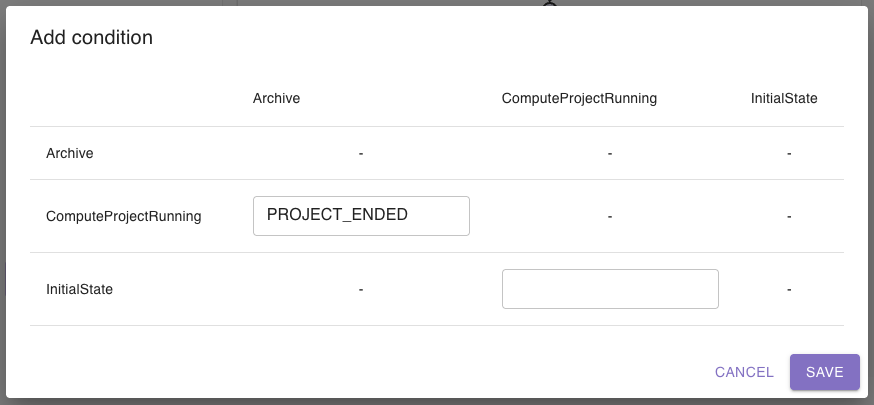

A dialog will open. On the left side, you see the origin states; on the top row, you see the target states. In this example, the condition when going from state ComputeProjectRunning to state Archive is, that the corresponding event fires with the value PROJECT_ENDED:

Update conditions dialog

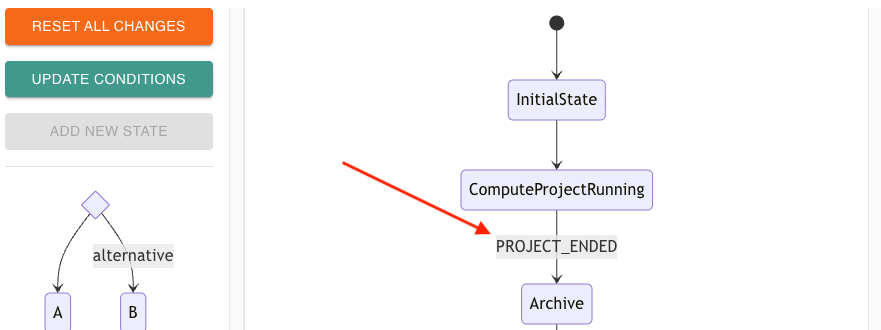

Click on save to add the changes to the state machine:

Added condition

Test state machine

Section titled “Test state machine”

By clicking on the test button PERSEUS will send the created state machine to the server, validates it and returns the result.

Button to test state machines

If both state machines are looking identical, the generated state machine has been created successfully. Save it by clicking on the submit button.
